U-profile 30x25x30 mm (13DF02), anodized aluminum (6 meters)
Mounting profile, for glass thickness 10 mm, 10.76 mm, 12 mm, 12.76 mm, or 16.76 mm
(more information)
- Free shipment from € 500,- (incl. VAT)
- Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
- Relatively short delivery times
- Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

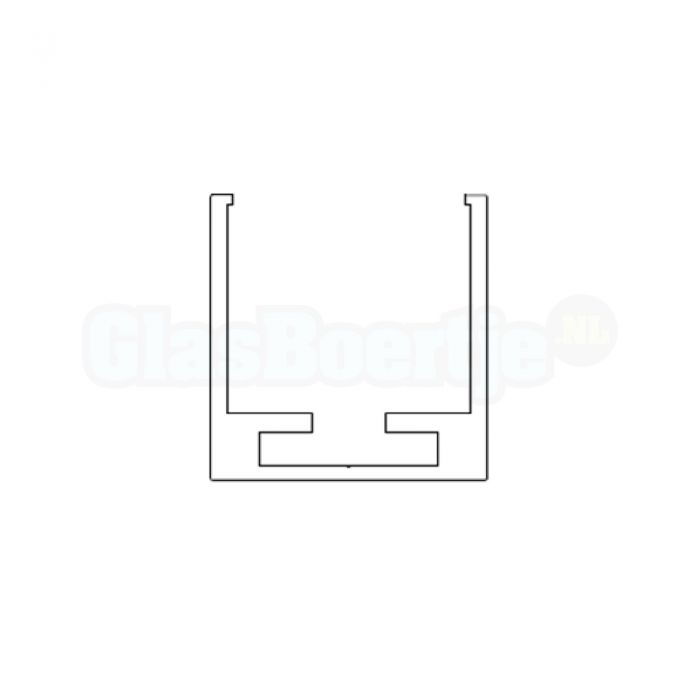

This U-profile 13DF02 of 30 x 25 x 30 mm (outer dimensions) is mainly used for the installation of glass (partition) walls in an office environment. Of course, this profile can also be used in residential situations, although a glass partition wall is not likely to be installed quickly at home. This profile is not suitable for the bathroom!
Ideally, you place this profile only on the ceiling. For the floor and the walls, use a matching click profile with rubbers, with a click strip. This way, you can insert the glass plate diagonally into the ceiling profile (13DF02) and let it rest on the floor profile (13DFKLIK). Then, you can place the rubbers in the ceiling profile and the click strip in the floor profile. Finally, finish by placing the click strips on the sides. The significant advantage of placing a U-profile without a click strip on the ceiling is that the plate stays in place during the montage and does not fall over. Use glass suction cups when placing the glass in the profiles, preferably work with at least 2 people, and work carefully.
This profile is delivered as standard without rubbers. U-profile 13DF02 can be used with different glass thicknesses by inserting different rubbers. In other words, when ordering the profile, you will need to separately order the desired rubber. When ordering the sealing rubber, you can specify the glass thickness you will be placing in it. The rubbers can be ordered per linear meter. This allows you to, for example, order 6 meters of U-profile 13DF02 and use it for multiple glass thicknesses by ordering the correct rubbers.
Features of U-profile 30 x 25 x 30 mm (13DF02), anodized aluminum:
- Aluminum profile
- Anodized
- Base U-profile, without rubbers!
- Suitable for glass thickness 10 mm, 10.76 mm, 12 mm, 12.76 mm, 16.76 mm
- In glass type: toughened glass 10 and 12 mm, laminated glass 55.2, 66.2, and 88.2
- Suitable for indoor use (not for the bathroom)
- Outer dimensions are 30 x 25 x 30 mm (height, width, height)
- Material thickness is 1.5 mm
- Available in lengths of 6 meters, can be cut to size on-site (we do not provide custom cutting)
- Glass deduction per side where this profile is placed: 15 mm
- The listed price is a unit price for 6 meters, without rubbers!
The U-profile 30 x 25 x 30 mm (13DF02), anodized aluminum is:
- Delivered WITHOUT RUBBERS!
- Delivered per 6 meters
Points of attention for U-profile 13DF02, anodized aluminum:
- The U-profile is delivered without rubbers. Depending on the glass thickness, you can order the appropriate rubber separately
- Think carefully about the correct glass size when placing a pane in the profile. You will need to apply a glass deduction of 15 mm on each side where the glass comes into this profile
| Art. no. | 213511 |
|---|---|
| Suitable types of glass | laminated glass, tempered glass |
| Glass thickness in mm | 10, 12, 10.76, 12.76, 16.76 |
| Length | 6000 mm |
| Profile size | 30 x 25 x 30 mm |
| Material | aluminum |
| Finishing | anodized aluminum |
| Scope of supply | per 1 piece |
| Unit of measurement | per piece |
| Packaging | schrink wrap |
| Warranty | 2 years |
| Expected delivery time | 7 - 10 working days |
| Shipping price NL | 13,50 |
| Shipping price BE | 17,50 |
| Shipping price EU | see the check-out page for actual pricing |
| Pick-up possible? | yes, Pick-up is possible in:, Oosterhout (Noord-Brabant) |
