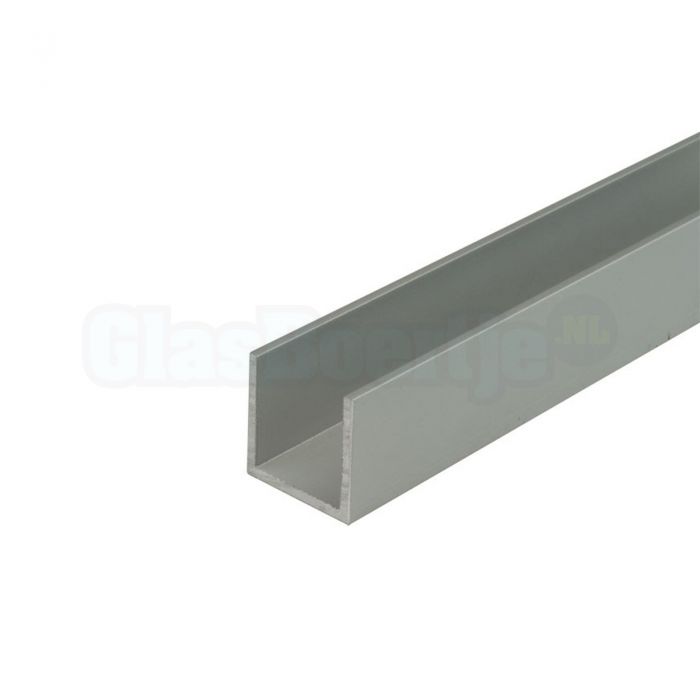

Aluminum U-profile 20x20x20 mm

Aluminum finished, made to measure or can be ordered as a 6 meter profile

(more information)

Art. no.

207704

€11.70

per meter

Delivery: 1 - 3 working days

GlasBoertje.nl is aangesloten bij Webshop Keurmerk 1772 beoordelingen bij Kiyoh

9.3

Free shipment from € 500,- (incl. VAT)
Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
Relatively short delivery times
Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

Details

This aluminum U-profile of 20x20x20 mm in outer size has an inner size of 18 x 16 x 18 mm. The most ideal would fit a glass panel of 8 mm thickness. This leaves you 4 mm space on both sides of the glass to apply a sealant seam (16 mm width as inner size minus 8 mm thick glass leaves 8 mm space. You divide this 8 mm over 2 sides of the glass, and that is 4 mm space per side).

10 mm thick glass could also be put in, then this will mean a sealant of 3 mm per side. This is actually also ok. With 12 mm glass you only have 2 mm left per side and that is a little to less to apply sealant. For 15 mm glass you could first put the selant in the profile and then press the glass panel in it. The disadvantage is that you have to break everything if you ever remove the glass from the profile.

You can use this profile indoors to mount glass. A common application for this profile is for glass walls and shower enclosures.

Features aluminum U-profile 20x20x20 mm:

Aluminum U-shaped profile
Suitable for indoor use
Outer size is 20 x 20 x 20 mm
Inner size is 18 x 16 x 18 mm
Material thickness is 2 mm
Order custom made; please order the total amount in meters under "pieces", rounded upwards (i.e. when you need 220 cm in total, you order 3 pieces, as that is 3 meters where your piece has te be cut out). In the comment section of the check/out page you can let us know in what sizes you want the profile(s) to be cut
Maximum order length from 1 piece: 6 meters
When completing the order on the payment page, please indicate in which length(s) you want the profile(s) delivered
The mentioned price is a 1 meter price

Aluminum U-profile 20x20x20 mm is delivered:

Cut to size

Points of attention:

The profile is usually delivered cut to the correct size or with a small over-length, so that you can saw it neatly to size in the work itself and finish the end side neatly
The ends are not finished when you receive them. You will have to finish it yourself by filing it smooth
With this profile no cover caps are available for the ends. You will have to seal it off or cut a cover from a piece of residual profile that you can mount on the end side
If you are going to place a glass panel in the profile, think carefully about the correct glass size. You will have to use a small glass deduction of at least approx. 2 - 4 mm (partly depending on the screw head that can protrude into the profile). If you apply the head in a recessed position, at least 2 mm is sufficient
Preferably you place a mounting gasket under the glass in the profile. You can also place this gasket on the side of the glass to properly position the glass pane in the profile before you seal it permanently. If you use this mounting gasket between the glass and the profile, take into account an extra glass deduction of at least 2 mm or 3 mm (depending on the thickness of the gasket used for it)

more information

more information
Art. no.	207704
Brand	GlasBoertje
Suitable types of glass	laminated glass, tempered glass, tempered-laminated glass
Glass thickness in mm	6, 7, 8, 10, 12, 15, 6.38, 6.76, 8.38, 8.76, 9.52, 10.76, 11.52, 12.76, 13.52
Profile size	20 x 20 x 20 mm
Material	anodized aluminum
Finishing	anodized aluminum
Scope of supply	custom size
Unit of measurement	per meter
Packaging	schrink wrap
Warranty	2 years
Expected delivery time	1 - 3 working days
Shipping price NL	13,50
Shipping price BE	17,50
Shipping price EU	this product can only be sent to NL and BE
