CBM Synera 3060 shower hinge (glass-glass), polished Stainless Steel
Suitable for 8 and 10 mm glass thickness, Stainless Steel, polished , capacity 2 hinges: max. 45 kg
(more information)
- Free shipment from € 500,- (incl. VAT)
- Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
- Relatively short delivery times
- Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

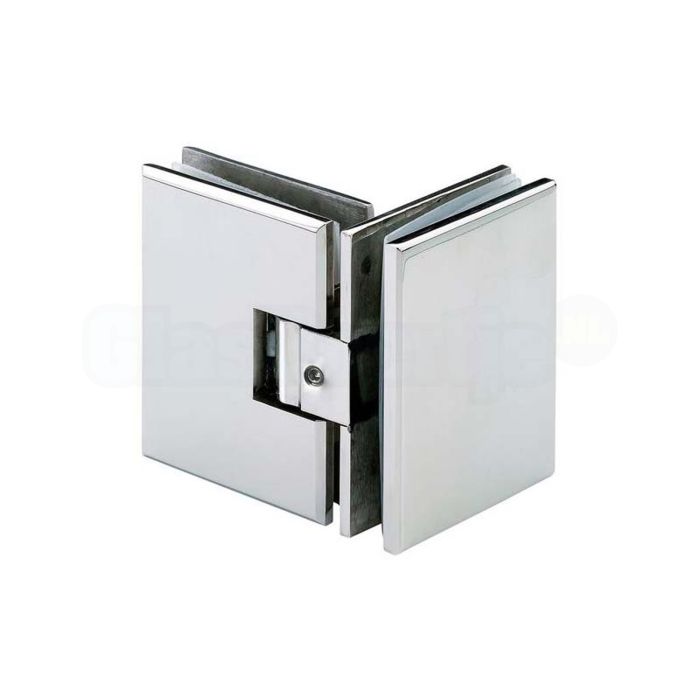

This CBM shower door hinge is from the Synera series and is completely made of stainless steel. CBM is an Italian manufacturer of different types of glass fittings, including shower glass fittings. This hinge is made of stainless steel (AISI304), is double-acting (so it turns both inwards and outwards), has an adjustable zero position and is mounted on the glass with clamping plates and screws.
This hinge is sold per piece and the mentioned price is one piece price. However, the specifications listed are based on the use of two hinges. Also logical because a door with 1 hinge would not work.
Main features CBM Synera 3060 showerdoor hinge glass-glass (polished Stainless Steel):
Showerdoor hinge for mounting a glass shower door on a glass wall, mounting at 90 degrees Double acting; Rotates 90 degrees inward and 90 degrees outward (total 180 degrees) Adjustable zero position; self-closing in the last centimeters towards the zero position Suitable for glass thickness: 8 and 10 mm (we recommend using 8 mm for a shower door) Maximum door weight: 45 kg (with two hinges) Max. size showerdoor with 8 mm glass: 1100 x 2000 mm Max. size showerdoor with 10 mm glass: 900 x 2000 mm Material: Stainless steel (AISI304), finishing polished Stainless Steel Pay attention! The cut-out as seen in the image is based on 8 mm glass thickness To be bought per piece, the mentioned price is the price for 1 piece! And not for the pair!
CBM Synera 3060 showerdoor hinge glass-glass (polished Stainless Steel) comes with:
One showerdoor hinge, finishing polished Two socket head screws for clamping the hinge to the glass wall and two socket head screws for clamping the glass door to the hinge Assembly gaskets that correspond to the glass thickness you specified Mounting instructions
Points of attention:
Make sure you use the correct glass deduction when ordering the glass door and shower enclosure. For example, if you install a sealing profile, you need a different glass deduction than if you are going to install a door without a seal. If you cannot find a solution, ask us for advice Read the mounting manual in advance. It contains useful tips Two hinges are always used for a showerdoor up to a height of 2000 mm (200 cm). If the door is higher then 2000 mm, three hinges are required. You then get a better load-bearing capacity and the pressure when opening / closing the door is better distributed over three hinges Work with precision, take your time, use the right tools and ask someone to help you when you need to move and mount the glass door NEVER let the glass door rest on the floor, always place something in between it such as a wooden slat, blanket etc. If glass is put on a hard surface, the risk of damage is very high. This also applies to any contact with the wall and other hard surfaces. Protect the glass at all times, it's a vulnerable material !
| Art. no. | 210202 |
|---|---|
| Brand | CBM |
| Series | Synera |
| Mounting of ... | glass door to glass wall |
| Degrees | 90 ° |
| Suitable types of glass | installation glass (tempered glass incl. 5 holes and edge finishing) |
| Glass thickness in mm | 8, 10 |
| Adjustable zero position | Yes |
| Capacity of 2 pieces (KG) | 45 |
| Max. size showerdoor with 8 mm glass | 1100 x 2000 mm (w x h) |
| Max. size showerdoor with 10 mm glass | 900 x 2000 mm (w x h) |
| Style | square |
| Material | Stainless Steel (AISI 304) |
| Finishing | polished Stainless Steel |
| Expected delivery time | 1 - 3 working days |
| Scope of supply | per 1 piece |
| Unit of measurement | per piece |
| Packaging | box |
| Warranty | 2 years |
| Shipping price NL | 13,50 |
| Shipping price BE | 17,50 |
| Shipping price EU | see the check-out page for actual pricing |
