Secondary window (low-e) with hinges in aluminum frame and laminated glass 33.1

Custom made, available in various colours, mounting with screws or turn locks, starting:

(more information)

Art. no.

215928

€204.00

per piece

Delivery: 4 - 6 working weeks

Height (in mm)

Width (in mm)

Color of the frame

Position of the hinges

Mounting the non-hinged side to the window frame

Qty

GlasBoertje.nl is aangesloten bij Webshop Keurmerk 1763 beoordelingen bij Kiyoh

9.3

Free shipment from € 500,- (incl. VAT)
Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
Relatively short delivery times
Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

Details

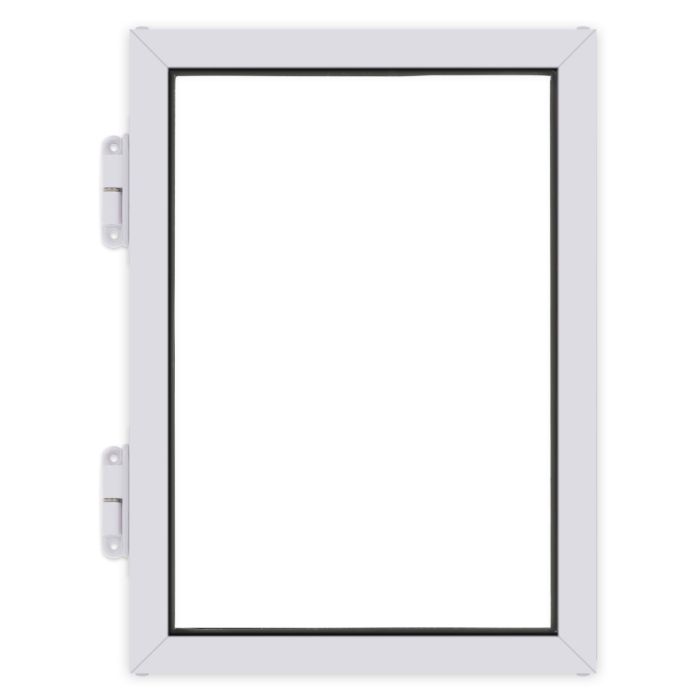

The low-e hinged secondary window with aluminum frame (laminated 33.1 glass with low-e coating) consists of an aluminum frame with a 6,38 mm thick laminated glass pane 33.1 with low-e coating. The hinged frame is available in 5 colors and can be ordered with latches or screw holes (to attach the opening side to the window frame). You mount a secondary window on the inside of your residence (on your wooden window frame) to provide better insulation if you still have single glazing. This hinged secondary window is custom-made and you can choose from various colors and installation methods:

Hinges and latches: You screw the hinges onto the wooden window frame and attach the latches to the opposite side of the frame. This allows you to open and close the secondary window. By turning the latches, you can secure the window in the closed position to prevent it from opening. If you choose the hinge option, we need to know whether the hinges should be on the left or right side.
Hinges and screws: You screw the hinges onto the wooden window frame and use screws to attach the other side of the secondary window to the frame. Again, we need to know whether the hinges should be on the left or right side.

For accurate sizing, measure the interior of the window frame. Then add 40 mm (4 cm) in width and 40 mm (4 cm) in height. This extra space accounts for the 2 cm wide frame, allowing it to fit neatly around the window frame without covering the opening of the window frame.

Features of secondary window low-e with hinges in aluminum frame (laminated glass 33.1 with low-e-coating):

Aluminum frame with hinges and laminated glass 33.1 (6.38 mm) featuring a hard low-E coating (pyrolytic coating)
The coating significantly improves the insulation value compared to a pane without this coating (U-value when installed on the interior side of an existing window: 2.0)
Glass is mounted in the frame with sealant
The frame is sturdily screwed together
Provides thermal insulation and soundproofing properties
Protects vulnerable single-pane glass
This product is delivered ready-to-install; you only need to mount it onto the frame
Easy to maintain
Simple to install and remove
Suitable for indoor use
Also suitable for heritage-listed properties
Customizable

Secondary window low-e with hinges in aluminum frame (laminated glass 33.1 with low-e coating) is provided by us:

Custom-made and delivered in the chosen color
Supplied with the ordered installation materials

Points of attention secondary window low-e with hinges in aluminum frame (laminated glass 33.1 with low-e coating):

Due to the weight of the glass, there are limitations on the sizes available for pivotable secondary windows. If they become too large, the frame could become damaged, and the glass could come loose. The dimensions offered in this configurator are therefore restricted. If you require larger dimensions, you can opt for fixed secondary windows (without hinges)
For custom glass production, tolerances are established within the glass industry regarding dimensions, quality, and finishing. These are industry-wide and are followed by all glass companies. Be aware that glass may have a slight dimensional variation (approx. 1 - 2 mm), and certain minor damages may not always be claimable
Think carefully about the correct glass size. Once your order is in production, size changes are no longer possible
You order the external size of the secondary window. To determine the correct size, measure the inside of the window frame and add a total of 40 mm to the width for the aluminum frame and also 40 mm to the height. This ensures the aluminum frame fits neatly onto the frame (around 2 cm all around) and can be properly installed
Ensure that when screwing into the frame, you don't screw too deep. Otherwise, you might go through the window frame and potentially damage the glass inside

more information

more information
Art. no.	215928
EAN	8720261140308
Brand	Qualiview
Glass thickness in mm	6.38
Low-e coating	Yes
Scope of supply	per 1 piece
Unit of measurement	per piece
Packaging	schrink wrap
Expected delivery time	4 - 6 working weeks
Shipping price NL	39,50
Shipping price BE	39,50
Shipping price EU	this product can only be sent to NL and BE
