Secondary window (low-e) with aluminum frame and laminated 33.1 glass

Custom made, available in various colours, mounting with screws or turn locks, starting:

(more information)
Art. no.
215923
€204.00
per piece
Delivery: 4 - 6 working weeks
  • Free shipment from € 500,- (incl. VAT)
  • Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
  • Relatively short delivery times
  • Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

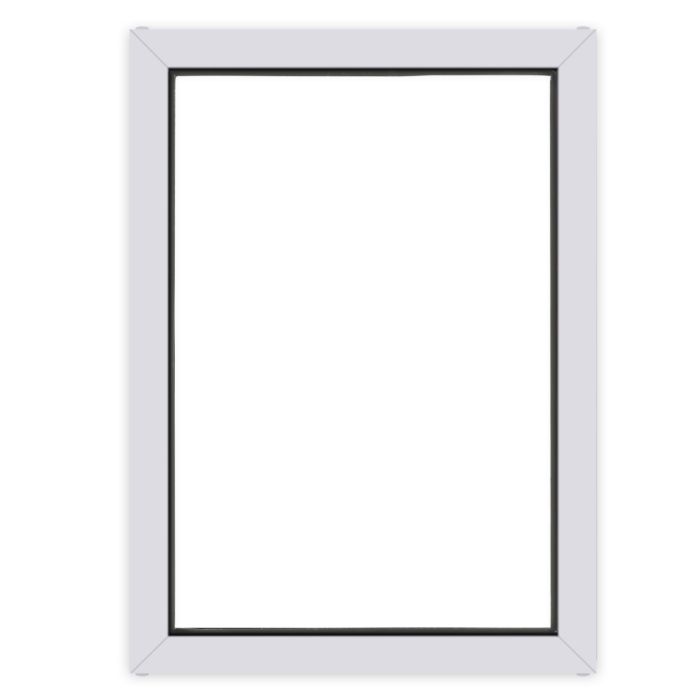

Low-E secondary window with aluminum frame (laminiated 33.1 glass with low-e coating) consists of an aluminum frame with a 6,38 mmmm thick laminated glass pane 33.1 with low-e coating. The frame is available in 5 colors and can be ordered with screw holes or turn locks. You install a secondary window on the inside of your home (onto your wooden window frame) to enhance insulation if you still have single-pane glass. It is completely custom-made, and you can choose from various colors and installation methods:

  • Screw holes: These are pre-drilled in the frame, and you can fasten the secondary window onto your wooden window frame with screws.
  • Turn locks: These rotary clamps are screwed onto the frame, around the secondary window. By turning the clamps, you secure the secondary window against the frame.

For accurate sizing, measure the interior of the window frame. Then add 40 mm (4 cm) in width and 40 mm (4 cm) in height. This extra space accounts for the 2 cm wide frame, allowing it to fit neatly around the window frame without covering the opening of the window frame.



Features of secondary window low-e with aluminum frame (laminated glass 33.1 with low-e coating):

  • Aluminum frame with laminated glass 33.1 (6.38 mm thick) featuring a hard Low-E coating (pyrolytic coating)
  • The coating significantly improves the insulation value compared to a pane without this coating (U-value when installed on the interior side of an existing window: 2.0)
  • Glass is mounted in the frame with sealant
  • The frame is sturdily screwed together
  • Provides thermal insulation and soundproofing properties
  • Protects vulnerable single-pane glass
  • This product is delivered ready-to-install; you only need to mount it onto the frame
  • Easy to maintain
  • Simple to install and remove
  • Suitable for indoor use
  • Also suitable for heritage-listed properties
  • Customizable



Secondary window low-e with aluminum frame (laminated glass 33.1 with low-e coating) is provided by us:

  • Custom-made and delivered in the chosen color
  • Supplied with the ordered installation materials



Points of attention secondary window low-e with aluminum frame (laminated glass 33.1 with low-e coating):

  • For custom glass production, tolerances are established within the glass industry regarding dimensions, quality, and finishing. These are industry-wide and are followed by all glass companies. Be aware that glass may have a slight dimensional variation (approx. 1 - 2 mm), and certain minor damages may not always be claimable
  • Think carefully about the correct glass size. Once your order is in production, size changes are no longer possible
  • You order the external size of the secondary window. To determine the correct size, measure the inside of the window frame and add a total of 40 mm to the width for the aluminum frame and also 40 mm to the height. This ensures the aluminum frame fits neatly onto the frame (around 2 cm all around) and can be properly installed
  • Ensure that when screwing into the frame, you don't screw too deep. Otherwise, you might go through the window frame and potentially damage the glass inside
