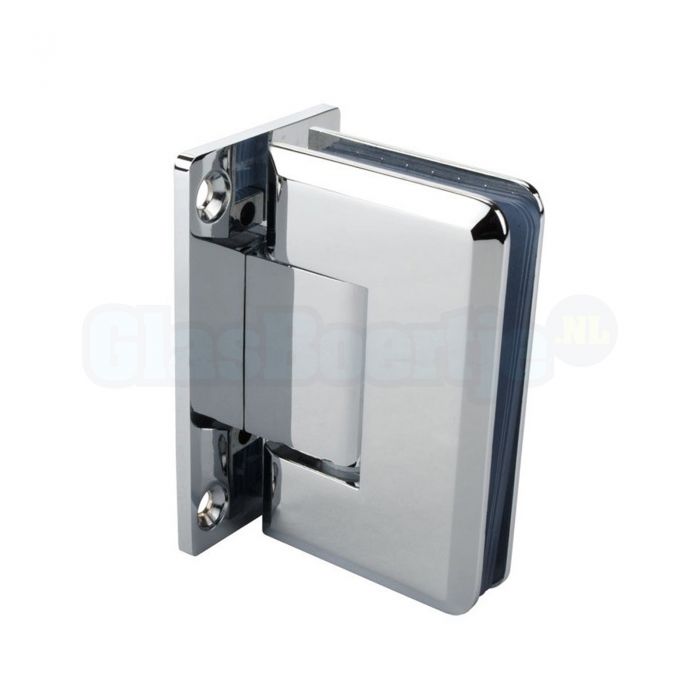

Metalglas B-400 shower hinge (wall-glass), chrome
Suitable for 8 and 10 mm glass thickness, Brass, polished chrome, capacity 2 hinges: max. 40 kg
(more information)
- Free shipment from € 500,- (incl. VAT)
- Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
- Relatively short delivery times
- Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard
This Metal glass shower door hinge has the item number "B-400". Metalglas is an Italian manufacturer of various types of glass fittings, including shower glass fittings. This hinge is made of Zamac, is double-acting (turns both inwards and outwards), has no adjustable zero position (standard zero position is is by standard on 0 degrees) and is mounted on the wall by a double-sided mounting plate. The mounting screws remain in sight, they are not covered with a cap or cover plate.
This hinge is sold per piece and the mentioned price is one piece price. However, the specifications listed are based on the use of two hinges. Also logical because a door with 1 hinge would not work.
Main features Metalglas B-400 showerdoor hinge (wall-glass) chrome:
Showerdoor hinge for mounting a glass shower door on a fixed wall, mounting at 90 degrees Double acting; Rotates 90 degrees inward and 90 degrees outward (total 180 degrees) Self-closing in the last centimeters towards the zero position. Fixed stop at 0 degrees Mounting plate equipped with four mounting holes Zamac material, chrome finish Suitable for glass thickness: 8 and 10 mm (we recommend using 8 mm for a shower door) Maximum door weight: 40 kg (with two hinges) Max. size showerdoor with 8 and 10 mm glass: 800 x 2000 mm Pay attention! The cut-out as seen in the image is based on 8 mm glass thickness To be bought per piece, the mentioned price is the price for 1 piece! And not for the pair!
Metalglas B-400 showerdoor hinge (wall-glass) chrome comes with:
One showerdoor hinge, finishing polished chrome Two socket head screws for clamping the glass door to the hinge Assembly gaskets that correspond to the glass thickness you specified Mounting instructions
Points of attention:
Make sure you use the correct glass deduction when ordering the glass door. For example, if you install a sealing profile, you need a different glass deduction than if you are going to install a door without a seal. If you cannot find a solution, ask us for advice Read the mounting manual in advance. It contains useful tips Two hinges are always used for a showerdoor up to a height of 2000 mm (200 cm). If the door is higher then 2000 mm, three hinges are required. You then get a better load-bearing capacity and the pressure when opening / closing the door is better distributed over three hinges Use the correct wall mounting screws and plugs for your situation. Because of various situations the screws do NOT come with the hinge by default. Choose the correct mounting materials for your situation! Wall mounting screws that are too small can break the hinge. Pay attention to this!! Mount the hinge on the glass door, position the glass door in the correct position and draw the drill holes on the wall. Now remove the glass door, drill the holes and place the correct plugs. Put the glass door back in the correct position again and screw the wall mounting screws on the wall, position the door (read manual!) and then tighten the wall mounting screws Set the zero position correctly (see also manual) Work with precision, take your time, use the right tools and ask someone to help you when you need to move and mount the glass door Preferably use a long water level or a laser water level to properly position the glass panel NEVER let the glass door rest on the floor, always place something in between it such as a wooden slat, blanket etc. If glass is put on a hard surface, the risk of damage is very high. This also applies to any contact with the wall and other hard surfaces. Protect the glass at all times, it's a vulnerable material !
| Art. no. | 208010 |
|---|---|
| Brand | MetalGlas |
| Mounting of ... | glass door to normal wall (non-glas wall) |
| Degrees | 90 ° |
| Suitable types of glass | installation glass (tempered glass incl. 5 holes and edge finishing) |
| Glass thickness in mm | 6, 8 |
| Adjustable zero position | Yes |
| Capacity of 2 pieces (KG) | 40 |
| Max. size showerdoor with 8 mm glass | 800 x 2000 mm (w x h) |
| Max. size showerdoor with 10 mm glass | 800 x 2000 mm (w x h) |
| Style | square |
| Material | Zamak |
| Finishing | glossy chrome |
| Expected delivery time | 2 - 3 working weeks |
| Scope of supply | per 1 piece |
| Unit of measurement | per piece |
| Packaging | box |
| Warranty | 2 years |
| Shipping price NL | 13,50 |
| Shipping price BE | 17,50 |
| Shipping price EU | see the check-out page for actual pricing |
