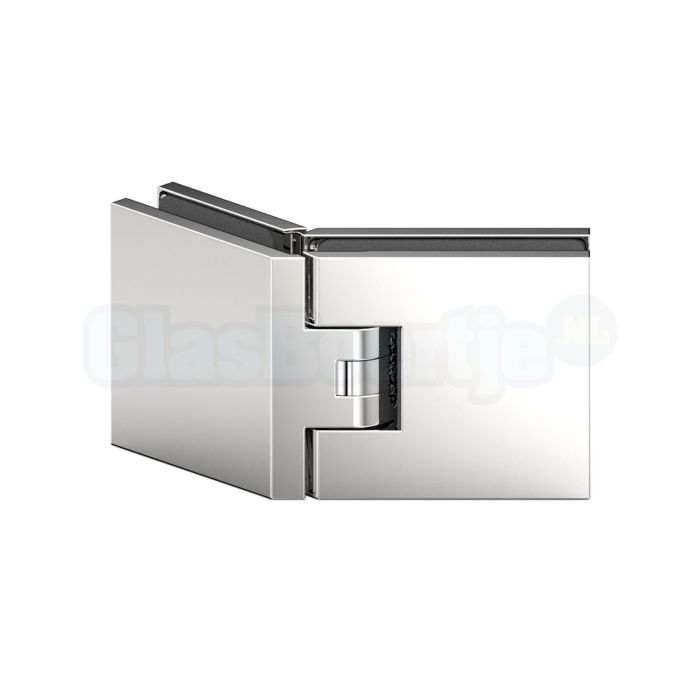

Flamea+ showerdoor hinge 8131 (glass-glass) 135°, chrome

Suitable for 6, 8 and 10 mm glass thickness, Zamac, polished chrome, capacity 2 hinges: max. 45 kg

(more information)

Art. no.

200200

€230.50

per piece

Delivery: 1 - 3 working days

The hinge is mounted on:

6 mm thick glass

8 mm thick glass

10 mm thick glass

Qty

GlasBoertje.nl is aangesloten bij Webshop Keurmerk 1766 beoordelingen bij Kiyoh

9.3

Free shipment from € 500,- (incl. VAT)
Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
Relatively short delivery times
Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

Details

This shower hinge from Pauli+Sohn is a quality product from Germany and comes from the Flamea+ series. The "plus" means that this series can also support somewhat larger and heavier doors. This series is the "big brother" of the normal Flamea series.

The sleek design of this relatively small hinge ensures a sleek and modern shower door. This gives your shower door a neutral and as "light" as possible appearance.

This hinge is sold per piece and the mentioned price is a 1 piece price. However, the specifications listed are based on the use of two hinges.

Features Pauli+Sohn Flamea+ showerdoor hinge 8131 ZN5, glass-glass, 135°, chrome:

Showerdoor hinge for mounting a glass shower door on a glass wall, mounting at 135 degrees
Double acting; Rotates 90 degrees inwards and 90 degrees outwards (total 180 degrees)
Adjustable zero position; self-closing in the last centimetres towards the zero position
Material Zamak, chrome finish
Suitable for glass thickness: 6, 8 and 10 mm (we recommend using 8 mm for a shower door)
Maximum door weight: 45 kg (with two hinges)
Max. size showerdoor with 6 and 8 mm glass: 1000 x 2000 mm
Max. size showerdoor with 10 mm glass: 900 x 2000 mm
Pay attention! The cut-out as seen in the image is based on 8 mm glass thickness
To be bought per piece, the mentioned price is the price for 1 piece! And not for the pair!

Pauli+Sohn Flamea+ showerdoor hinge 8131 ZN5, glass-glass, 135°, chrome:

One showerdoor hinge
Two socket flat head screws for mounting the hinge to the glass wall
Four socket flat head screws for mounting the glass door to the hinge
Three cover plates to place over the six socket flat head clamping screws
Nine silicone stickers to secure the three cover plates to the hinge
Assembly gaskets that correspond to the glass thickness you specified
Mounting instructions

Points of attention:

Make sure you use the correct glass deduction when ordering the glass door. For example, if you install a sealing profile, you need a different glass deduction than if you are going to install a door without a seal. Please ask us for advice if you don't know what to do
Read the mounting manual in advance. It contains useful tips
Two hinges are always used for a showerdoor up to a height of 2000 mm (200 cm). If the door is higher than 2000 mm, three hinges are required. You then get a better load-bearing capacity and the pressure when opening / closing the door is better
Distributed over three hinges
Work with precision, take your time, use the right tools and ask someone to help you when you need to move and mount the glass door
Preferably use a long water level or a laser water level to properly position the glass panel
Make sure the floor and wall are level. If these are not level, this can result in a crooked gap between the glass and the wall/floor. You than may have to order the glass in a different shape to fit correctly
NEVER let the glass rest on the floor, always place something in between such as a wooden slat, blanket, rug, etc. If glass is placed on a hard surface, the risk of damage is very high. This also applies to contact with the wall and other hard surfaces. Protect the glass at all times, it is and remains a vulnerable product
ALWAYS use the correct Personal Protection Equipment when you move and/or install the glass

more information

more information
Art. no.	200200
Brand	Pauli + Sohn
Series	Flamea +
Application	showerdoor
Mounting of ...	glass door to glass wall
Degrees	135 °
Suitable types of glass	installation glass (tempered glass incl. 5 holes and edge finishing)
Glass thickness in mm	6, 8, 10
Adjustable zero position	Yes
Capacity of 2 pieces (KG)	45
Max. size showerdoor with 8 mm glass	1000 x 2000 mm (w x h)
Max. size showerdoor with 10 mm glass	900 x 2000 mm (w x h)
Style	square
Material	Zamak
Finishing	glossy chrome
Expected delivery time	1 - 3 working days
Scope of supply	per 1 piece
Unit of measurement	per piece
Packaging	box
Warranty	3 years
Shipping price NL	13,50
Shipping price BE	17,50
Shipping price EU	see the check-out page for actual pricing
Pick-up possible?	yes, Pick-up is possible in:, Oosterhout (Noord-Brabant), 's-Hertogenbosch, (always place orders on the website)
Website manufacturer	Pauli+Sohn
