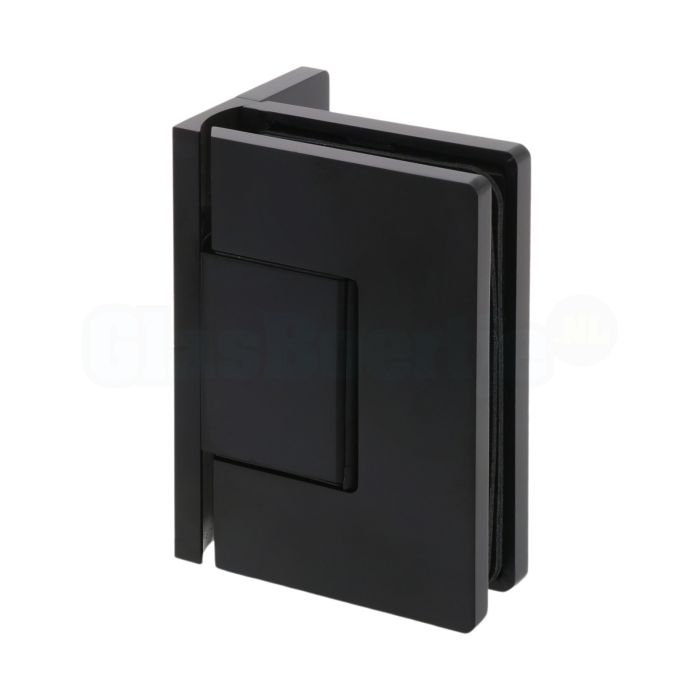

Estlegno showerdoor hinge 2430-001 (wall-glass), matt black
For 8 and 10 mm glass, max. doorsize 2 hinges on 8 mm glass: 1000 x 2500 mm (<70 kg)
(more information)
- Free shipment from € 500,- (incl. VAT)
- Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
- Relatively short delivery times
- Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard
Features Estlegno showerdoor hinge 2430-001, wall-glass, matt black:
- Showerdoor hinge for mounting a glass shower door on a wall, mounting at 90 degrees
- Double acting; Rotates 90 degrees inwards and 90 degrees outwards (total 180 degrees)
- Adjustable zero position; self-closing in the last centimetres towards the zero position
- Material Brass, matt black finish
- Suitable for glass thickness: 8 and 10 mm (we recommend using 8 mm for a shower door)
- Maximum door weight: 70 kg (with two hinges)
- Max. size showerdoor with 8 and 10 mm glass: 1000 x 2500 mm
- Pay attention! The cut-out as seen in the image is based on 8 mm glass thickness
- To be bought per piece, the mentioned price is the price for 1 piece! And not for the pair!
Estlegno showerdoor hinge 2430-001, wall-glass, matt black comes with:
- One showerdoor hinge
- Mounting instructions
Points of attention:
- Make sure you use the correct glass deduction when ordering the glass door. For example, if you install a sealing profile, you need a different glass deduction than if you are going to install a door without a seal. Please ask us for advice if you don't know what to do
- Read the mounting manual in advance. It contains useful tips
- Use the correct wall mounting screws and plugs for your situation. Because of various situations the screws and plugs do NOT come with the hinge by default. Choose the correct mounting materials for your situation!
- Wall mounting screws that are too small can damage the hinge. Pay attention to this!!
- Work with precision, take your time, use the right tools and ask someone to help you when you need to move and mount the glass door
- Preferably use a long water level or a laser water level to properly position the glass panel
- Make sure the floor and wall are level. If these are not level, this can result in a crooked gap between the glass and the wall/floor. You than may have to order the glass in a different shape to fit correctly
- NEVER let the glass rest on the floor, always place something in between such as a wooden slat, blanket, rug, etc. If glass is placed on a hard surface, the risk of damage is very high. This also applies to contact with the wall and other hard surfaces. Protect the glass at all times, it is and remains a vulnerable product
- ALWAYS use the correct Personal Protection Equipment when you move and/or install the glass
| Art. no. | 213814 |
|---|---|
| Brand | Estlegno |
| Mounting of ... | glass door to normal wall (non-glas wall) |
| Degrees | 90 ° |
| Suitable types of glass | installation glass (tempered glass incl. 5 holes and edge finishing) |
| Glass thickness in mm | 8, 10 |
| Adjustable zero position | Yes |
| Capacity of 2 pieces (KG) | 70 |
| Max. size showerdoor with 8 mm glass | 1000 x 2500 mm (w x h) |
| Max. size showerdoor with 10 mm glass | 1000 x 2500 mm (w x h) |
| Style | square |
| Material | Brass |
| Finishing | matt black |
| Expected delivery time | 1 - 3 working days |
| Scope of supply | per 1 piece |
| Unit of measurement | per piece |
| Packaging | box |
| Warranty | 3 years |
| Shipping price NL | 13,50 |
| Shipping price BE | 17,50 |
| Shipping price EU | see the check-out page for actual pricing |
