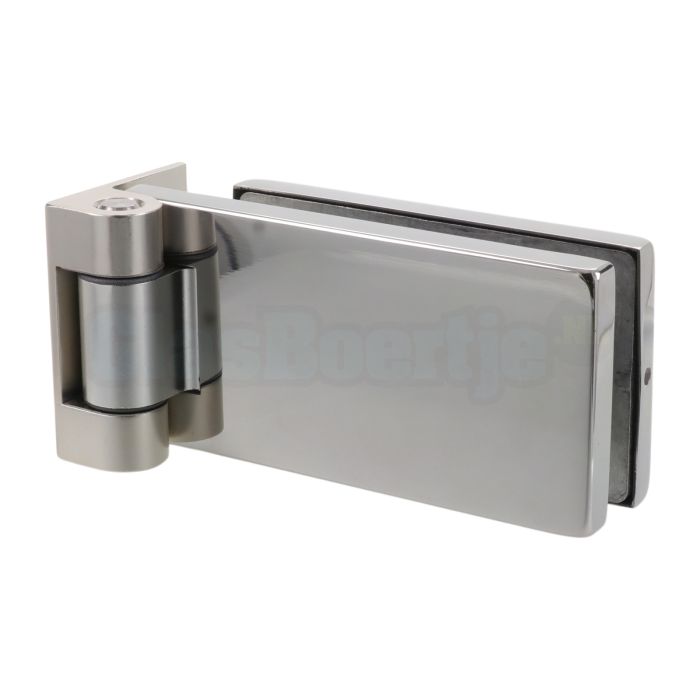

Casma Quadra 13100 glass door hinge for flush door, polished stainless steel
For 8, 10 of 12 mm glass, capacity 2 pcs.: max. 45 kg
(more information)
- Free shipment from € 500,- (incl. VAT)
- Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
- Relatively short delivery times
- Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard
Features of Casma Quadra glass door hinge for flush door (polished Stainless Steel):
- Glass door hinge for single-acting glass door with a stop
- Application in a frame with a rebate
- Suitable for glass thickness: 8, 10, or 12 mm
- Maximum door weight: 45 kg (with two hinges)
- Maximum door width: 1000 mm
- The hinge is made of aluminum, visible parts with polished stainless steel finish
- Cover caps are made of stainless steel AISI316 and polished finish (shiny)
- Drill holes in glass per hinge: 2 pieces Ø 16/20 mm
- To be ordered individually, the listed price is a unit price!
Casma Quadra glass door hinge for flush door (polished Stainless Steel) comes with:
- One hinge
- Polished stainless steel cover caps (chrome appearance)
- Required screws for clamping the hinge to the glass
- Required gasket for 8 and 10 mm or 12 mm thick glass
- Delivered in a box
Points of attention:
- In this version, the hinge has a brushed stainless steel finish, but the end caps are polished and shiny. The difference in this finish is noticeable but not necessarily disturbing. Take a close look at the photos of this product; we have taken them ourselves to clearly illustrate and show this difference
- Use the right screws for your situation (these are not included with the hinge)
- Mount the hinges on the door, position the door in the right place, and mark the drill holes on the frame. Now remove the door and drill the screw holes
- Place the door back in the correct position and screw the hinges securely onto the frame
- Work carefully and with the right tools
- Preferably use a long level or a laser level for properly positioning the door
- Up to a door height of 2100 mm (210 cm), always use two hinges. If the door is higher, three hinges are used. This provides better load-bearing capacity, and the pressure when opening/closing the door is better distributed over three hinges
- Ensure that you use the correct glass deduction when ordering the glass door. Consult with us for advice if you are unsure
- Never let the door rest on the floor; always place something in between, such as a wooden slat, blanket, carpet, etc. Placing glass on a hard surface greatly increases the risk of damage. This also applies to contact with the wall and other hard surfaces. Protect the glass; it remains a fragile product
| Art. no. | 224902 |
|---|---|
| Brand | Casma |
| Series | Quadra |
| Suitable for | stompe deur |
| Mounting of ... | glass door to normal wall (non-glas wall) |
| Degrees | 90 ° |
| Suitable types of glass | installation glass (tempered glass incl. 5 holes and edge finishing) |
| Glass thickness in mm | 8, 10, 12 |
| Max door width (mm) | 1000 |
| Capacity 2 pcs. (KG) | 45 |
| Adjustable zero position | No |
| Style | square |
| Material | aluminum |
| Finishing | polished Stainless Steel |
| Expected delivery time | 7 - 10 working days |
| Scope of supply | per 1 piece |
| Unit of measurement | per piece |
| Packaging | box |
| Warranty | 2 years |
| Shipping price NL | 13,50 |
| Shipping price BE | 17,50 |
| Shipping price EU | see the check-out page for actual pricing |
| Pick-up possible? | yes, Pick-up is possible in:, Oosterhout (Noord-Brabant), 's-Hertogenbosch |
